We can supply the following Rivacold RCMR evaporators.
Please phone for prices and to check availability:
01455 842925
or email: This email address is being protected from spambots. You need JavaScript enabled to view it.

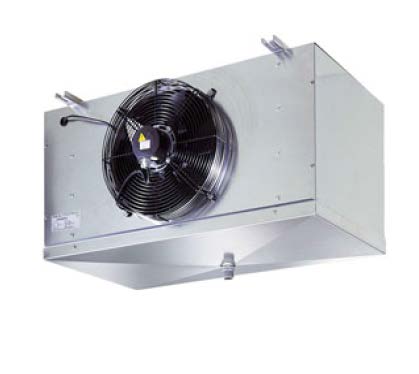

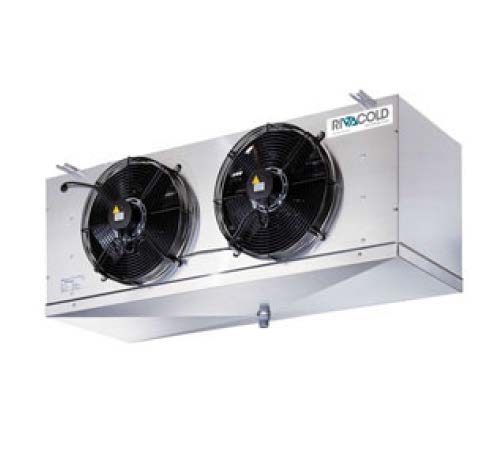

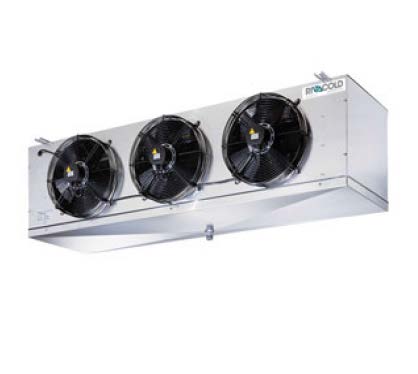

RCMR ø350 range unit coolers have been designed to be installed inside cold rooms suited for fresh and frozen goods storage
This range completes the RC and RCS range applications and though having extremely compact dimensions, reaches bigger capacities suited for medium size cold rooms
RCMR ø350 range is available in different combinations of fi n spacing dimensions and tube raws properly sized according to the needed applications
The ED version is supplied with mounted defrosting heaters and is suitable for being used at low temperature applications
The fan motors operate in the suction mode and prevent the condensate forming on the fan
The coil is made of aluminium fins, 12 mm copper tube and a geometry of 37,5 x 32,5
RCMR ø350 unit coolers can be classified in three groups according to the needed cold room temperature (Tc): 4mm fin spacing for a Tc from -5°C to +15°C; 6mm fin spacing for a Tc from -20°C to+15°C; 8mm fin spacing for a Tc from -40°C to +4°C.
The coils are tested with nitrogen at a pressure of 25 bar.
The fan motor models in use have the following features:
Manufactured following EN 60335-1 laws, with internal thermal protection
Fan diameter 350 mm, external rotor
Power supply 230-240V/1/50-60Hz
IP44 protection rate
F insulation class
operating temperature -40°C a +65°C
Electrics made in conformity with 2006/95/CE Low Tension directive
The housing is made of aluminium
The manufacturing solutions used give the housing strength and guarantee the absence of vibrations during the functioning.
Screws, washers and nuts are made of stainless steel
